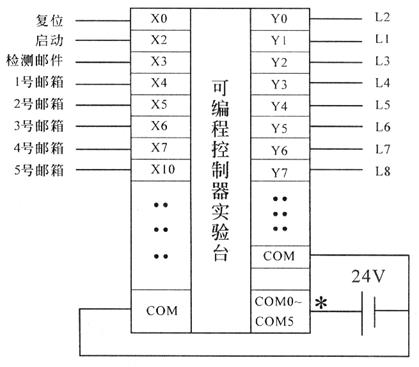

| 輸入地址 | 輸出地址 | ||
| 復位 | X0 | L2 | Y0 |
| 啟動 | X3 | L1 | Y1 |
| 檢測郵件 | X4 | L3 | Y2 |
| 1號郵件箱 | X5 | L4 | Y7 |
| 2號郵件箱 | X6 | L5 | Y3 |
| 3號郵件箱 | X7 | L6 | Y4 |
| 4號郵件箱 | X10 | L7 | Y5 |
| 5號郵件箱 | X2 | L8 | Y6 |
|
0 LD X000 1 ZRST Y000 Y006 6 ZRST M1 M9 11 LD X003 12 OR Y000 13 OR M1 14 ANI M9 15 OUT Y000 16 LD X004 17 OR M4 18 ANI M3 19 OUT M4 20 AND Y000 |
21 OUT Y007 22 LD M4 23 OUT T2 K10 26 LD T2 27 RST Y007 28 LD X005 29 OR Y003 30 AND M4 31 ANI Y004 32 ANI Y005 33 ANI Y006 34 ANI M5 35 ANI M9 |
36 AND Y000 37 OUT Y003 38 LD X006 39 OR Y004 40 AND M4 41 ANI Y003 42 ANI Y005 43 ANI Y006 44 ANI M5 45 ANI M9 46 AND Y000 47 OUT Y004 48 LD X007 |
49 OR Y005 50 AND M4 51 ANI Y003 52 ANI Y004 53 ANI Y006 54 ANI M5 55 ANI M9 56 AND Y000 57 OUT Y005 58 LD X010 59 OR Y006 60 AND M4 61 ANI Y003 |
|
62 ANI Y004 63 ANI Y005 64 ANI M5 65 ANI M9 66 AND Y000 67 OUT Y006 68 LD Y003 69 OR Y004 70 OR Y005 |
71 OR Y006 72 OR Y002 73 ANI M5 74 OUT Y002 75 OUT Y001 76 OUT M2 77 OUT T0 K30 80 LD T0 81 OUT M3 |
82 OUT M5 83 OUT T1 K2 86 LD T1 87 OUT M1 88 LD X002 89 AND M4 90 OR M9 91 ANI Y003 92 ANI Y004 |
93 ANI Y005 94 ANI Y006 95 ANI X003 96 OUT M9 97 LD M8013 98 AND M9 99 OUT Y001 100 RST M4 101 END |
